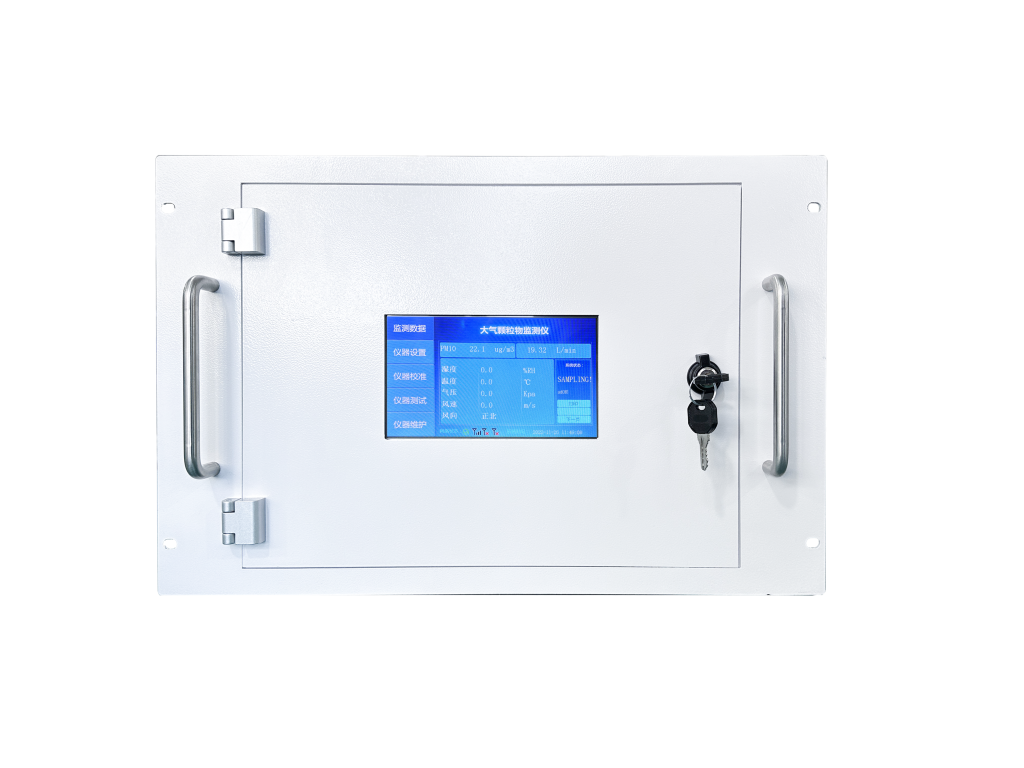

Automatic detector ZWIN-AQMS30P-PM10

Automatic detector ZWIN-AQMS30P-PM10

المنتجات غبار 577 0

DESCRIPTION

  • Storage capacity can reach to 1,000,000. On board storage for over 20 years of data
  • Real-time operating system, online software upgrade
  • Keyboard input
  • One channel for sampling and analysis in case of any error caused by paper feed
  • Mass flowmeter to measure the flowrate, constant sampling to ensure the measurement accuracy
  • Automatic fault diagnosis and alarms, also capable of fixing errors remotely
  • Multi interface output: analog output, current output, relay output

Technical data

Measuring range - 0-1.0 mg/m3 0-10mg/m3 optional

Min LOD - ≤0.005mg/m3

parallelity - ≤±7% or 5 μg/m3

Power supply - AC220V±10%,50Hz±1Hz

Timing error - 10kPa

Sampling flow deviation - 16.7LPM ±2%

Operating temperature - 0-40℃



CHARACTERISTICS

Detected entity particle
Other characteristics real-time, automatic, with LED display
Output RS-232, current output, with relay output
